EinScan HX

EinScan HX

CA$0.00

Get a Quote

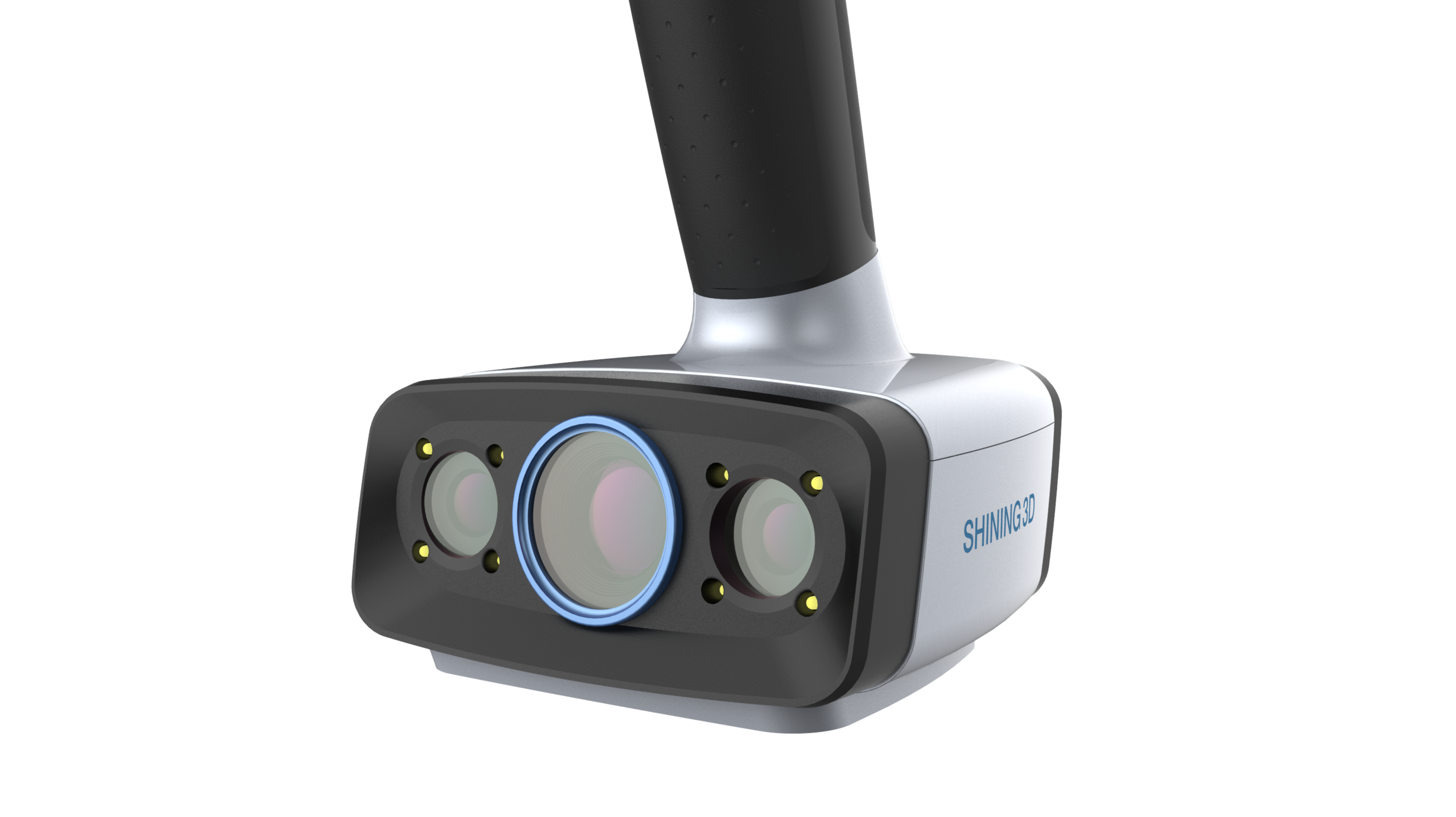

Hybrid Blue Laser & LED Light Source
Handheld 3D Scanner

WATCH VIDEO

Based on years of 3D measurement experience and market demand, SHINING 3D innovatively integrates blue LED light and blue laser into EinScan HX handheld 3D scanner. The hybrid laser and LED light sources make EinScan HX compatible with a wider range of object sizes, meeting multiple needs of users. High efficiency and reliable result give EinScan HX more application possibilities.

Hybrid Blue Laser & LED Light

Innovatively integrated with dual blue LED light and blue laser, improves scanning materials adaptability with less limitation for a wider range of applications. LED light scanning allows rapid 3D scanning. Laser scanning, which is less sensitive to ambient light, gives better performance to reflective and dark color surface.

Reliable Results

The high resolution and accuracy meet the needs of most industrial applications for reverse engineering and measuring.

Minimum point distance 0.05 mm

Accuracy up to 0.04 mm under Laser Scan

High Efficiency

Processing speed of EinScan HX under Rapid Scan Mode is up to1,200,000 points/s, and multiple blue laser lines under Laser Scan Mode makes scanning of most objects in minutes for reverse engineering, CAD/CAM, 3D printing and etc.

Portable & Easy Operation

EinScan HX is plug and play with user friendly software, which is easy to operate, no matter you are newbie or with professional experience in 3D scanning. The portability and flexibility use of EinScan HX has been considered to its ergonomic design for a more efficient and comfortable scanning experience.

Ergonomic Design

Weight:710g

Full Color

With built-in color camera, it supports

full color texture capturing and tracking by texture.

EinScan HX Reverse Engineering Design Bundle

A hybrid light source 3D scanner with reverse engineering and CAD capabilities. It includes GeoMagic Essentials software Edition. Bridging the gap between 3D scanning and CAD in Geomagic Essentials.
